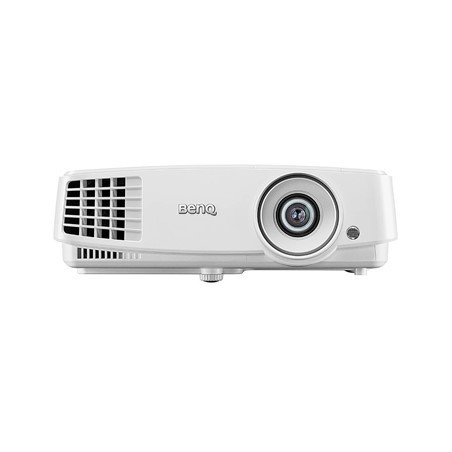

Ms527 Video Projector

Post
Native Resolution: SVGA (800x600)
Native aspect ratio: 4:3
Brightness (ANSI lumens): 3300
Contrast Ratio (FOFO): 13000:1
Selectable aspect ratio: 16:10,16:9,4:3,Auto,Real
Display color: 30 Bits (1.07 billion colors)
Light Source: Lamp
Light source power: 196W
Light source life: Economical 6000 hours,LampSave 10000 hours,Normal 4500 hours,SmartEco 6500 hours

Optics
Projection Ratio: 1.96-2.15
Zoom Ratio: 1.1x
Lens: F=2.56- 2.68 f=22-24.1
Projection offset (full height): 120%
Trapezoidal fit: 1D, vertical ± 40 degree
ANSI uniformity (min.): -45%
Clear Image Size: 60"~180"
Image Size: 30"~300"

Image Modes: 3D,Cinema,Dynamic,Presentation,SRGB,User 1,User 2
Color wheel segment (lamp): 6 segments (RGBYCW)
Color wheel speed: 2X (60 Hz), 3X (50 Hz)

Compatibility
HDTV compatibility: 1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Video Compatibility: NTSC, PAL, SECAM
3D Compatibility: Frame Packaging, Sequential Frame, Side by Side, Top to Bottom

I/O interface
PC input (15-pin D-sub): 2
Monitor output (D-sub 15-pin): 1
Composite Video Input (RCA): 1
S-Video Input (Mini DIN 4-pin): 1
HDMI input: 1
USB Type Mini B: 1
RS232 input (DB-9 pin): 1

audio
Audio output (3.5mm mini-jack): 1
Audio input (3.5mm mini-jack): 1

Environment
Current source: 100 to 240 VAC, 50/60 Hz
Typical power consumption (110 V): 270W
Standby Power Consumption: <0.5W
Acoustic noise (Typ./Eco.) (dB): 33/28dBA
Operating temperature: 0~40°C

Accessories
Remote control with battery: RCX022
Power cord (by region): 1 (1.8M)
VGA cable (D-sub 15-pin): 1 (1.5 m)
User Manual on CD: 1 (25L)
3D glasses: (Optional),Yes, DGD5
Quick Start Guide: 1 (18L)
Installation Guide: Yes
Warranty card (by region): Yes
Universal Ceiling Holder: Yes, CMG3

OSD
OSD language: 28L
