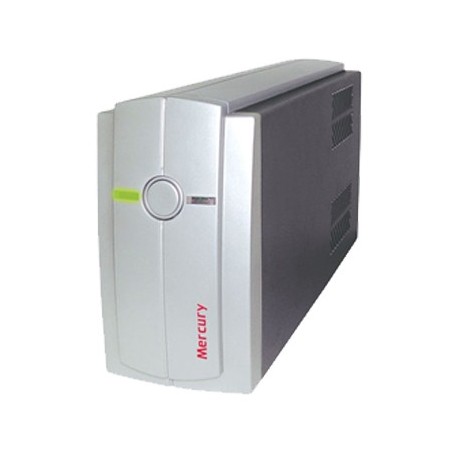

Mercury brand inverters

Elite1000 pro

Capacity: 1000 va
Automatic restart
Overload protection

60,000 FCFA
Tax excluded
Quantity

  GUARANTEED PRODUCTS

(Quality products under solid warranties)

  Secure payment

(Shop safely)

  Free shipping

(We offer free delivery)

Description

- Building in AVR with a wide range of of entry of 140 ~ 300VAC
- Automatic restart
- Short output protection circut
- Overload protection
- Overload protection
- A sleek and compact design and compact design with control of the CPU CONTROL

Specifications
Input Voltage 220VAC
Input Frequency 50Hz
Input Phase Single Phase
Input Socket with FUSE
Cold Start (0~100% load) Press the ON / OFF Switch
Input Range (220V) 140V~285V
Normal Frequency 50Hz
Rating Output (VA) 1000VA
Rating Output (W) 600W
Waveform Battery Mode (Simulated Sine Wave)
AC Mode (Sine Wave)
Power Factor 0.6
Rating Voltage 220V
Output Range 220VAC +17~22%
(No Load Connected)
Rear Output Socket 3x IEC - Battery Backup
Transfer Time Typical 8ms (max 15ms)
Short Circuit Protection Line Mode FUSE & Software Protection
100%~120% (gives alarm & shut down in 3min)
120%~130% (beeps alarm & shut down in 30s)
>130% (shut down immediately)
Battery Mode Software Protection controlled by CPU
100%~110% (gives alarm & shut down in 10s)
>110% (shut down immediately)
Battery & Runtime Rating 12V / 9AH x1
Battery & Runtime Backup Time Typical 8mins~20mins
Battery & Runtime Change Current 1.5A (max)
Battery & Runtime Over Charge >14.8V ±0.5 (Stop Charging)
Battery & Runtime Protection <13.5V ±0.5 (Recharge)
Weight (kg) 7.5
Dimension (mm) 370 x 145 x 230
Master Carton (mm) 393 x 310 x 267 (2pcs)
Output Rating Frequency 50Hz
Output Line Mode Synchronize
with the Utility
Output Battery Mode 50Hz ±1Hz
